| Technical Data | RES-5.12K3 | RES-5.12K4 | RES-5.12K5 | RES-5.12K6 |
Battery Module | ||||
| Cell type | LFP (LiFePO4) | |||
| Battery capacity | 5.12 kWh | |||
| Cell capacity | 100 Ah | |||
| Depth of discharge | 93% | |||
| Dimensions (WxDxH) | 675x310x251 mm | |||
| Weight | 53 kg | |||
General Data | ||||
| Battery quantity | 3 + BMS | 4 + BMS | 5 + BMS | 6 + BMS |
| System capacity | 15.36 kWh | 20.48 kWh | 25.60 kWh | 30.72 kWh |
| Rated voltage | 153.6 V | 204.8 V | 256 V | 307.2 V |
| Voltage range | 129.6~170.4 V | 172.8~227.2 V | 216~284 V | 259.2~340.8 V |
| Charging temperature | 0~55ºC | |||
| Discharging temperature | -10~55ºC | |||
| Operating temperature range | -20~55ºC | |||
| Continuous charge/discharge current | 50 A | |||
| Maximum charge/discharge current | 100 A | |||
| Cycle life | ≥6000 cycles (25ºC, 0.5C, 70%EOL) | |||
| SOC accuracy | <8% | |||
| Communication | CAN | |||
| Ingress protection | IP65 | |||
| Transportation SOC | <30% | |||
| Cooling concept | Natural cooling | |||
| Relative humidity | <95%, No condensation | |||
| Maximum working altitude | 2000 m | |||
| Safety standards | CE, UN38.3, SDS | |||
| Dimensions (WxDxH) | 678x310x1017 mm | 678x310x1268 mm | 678x310x1519 mm | 678x310x1770 mm |
| Weight | 172 kg | 225 kg | 278 kg | 331 kg |

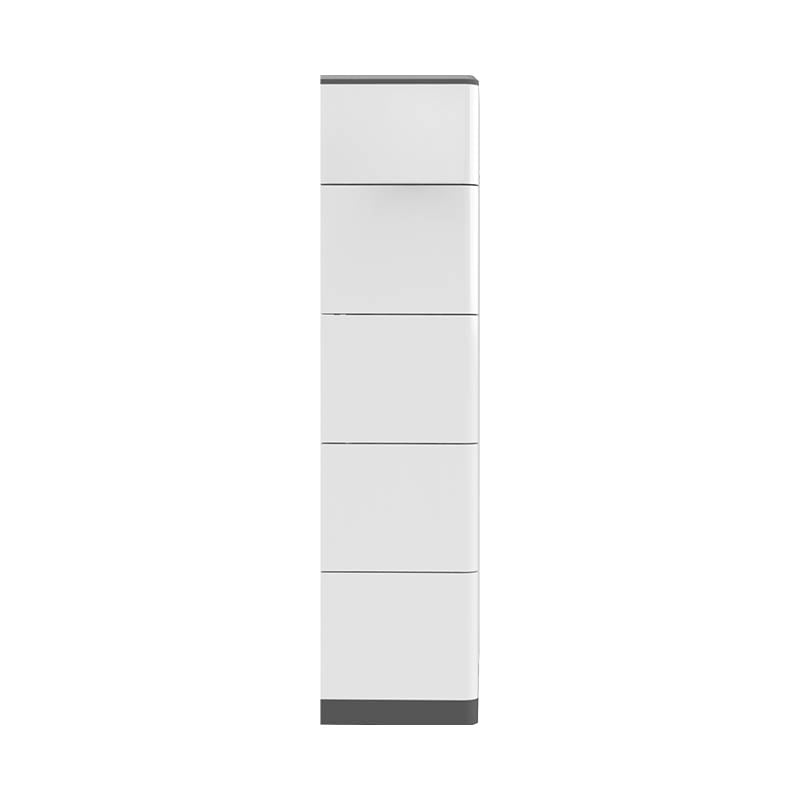

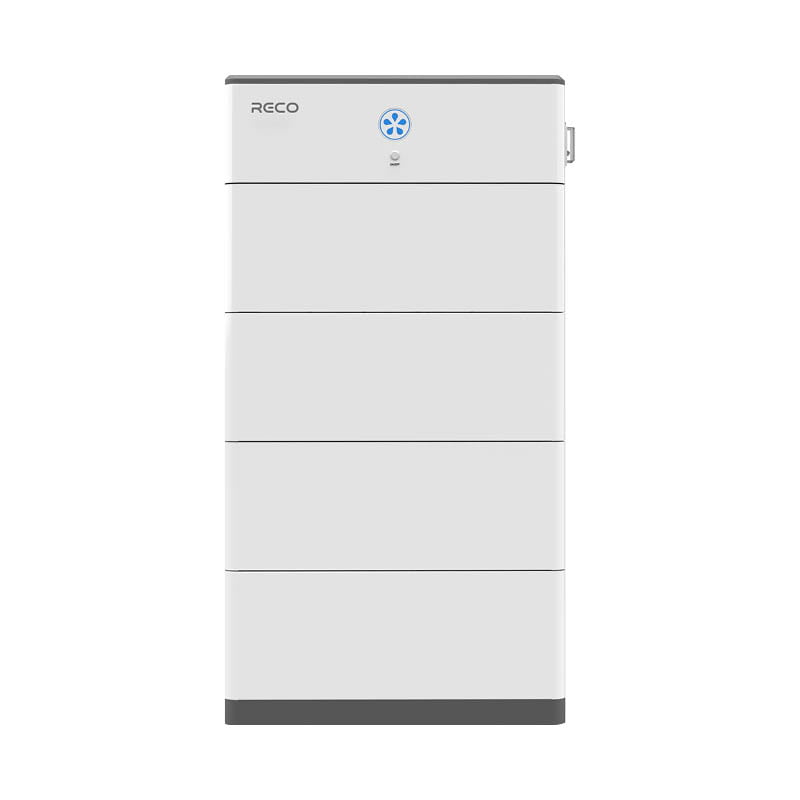

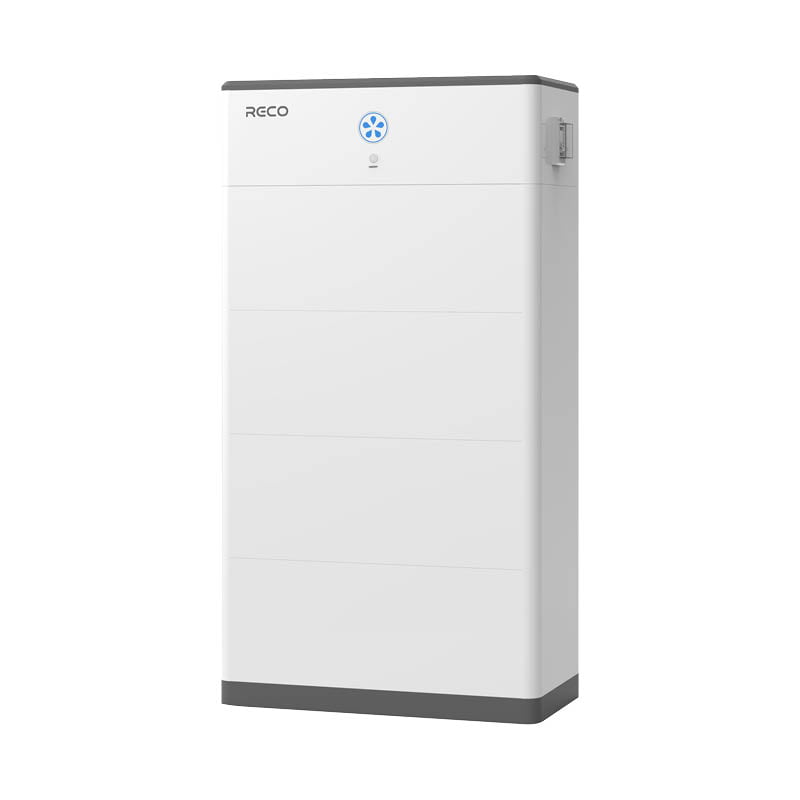

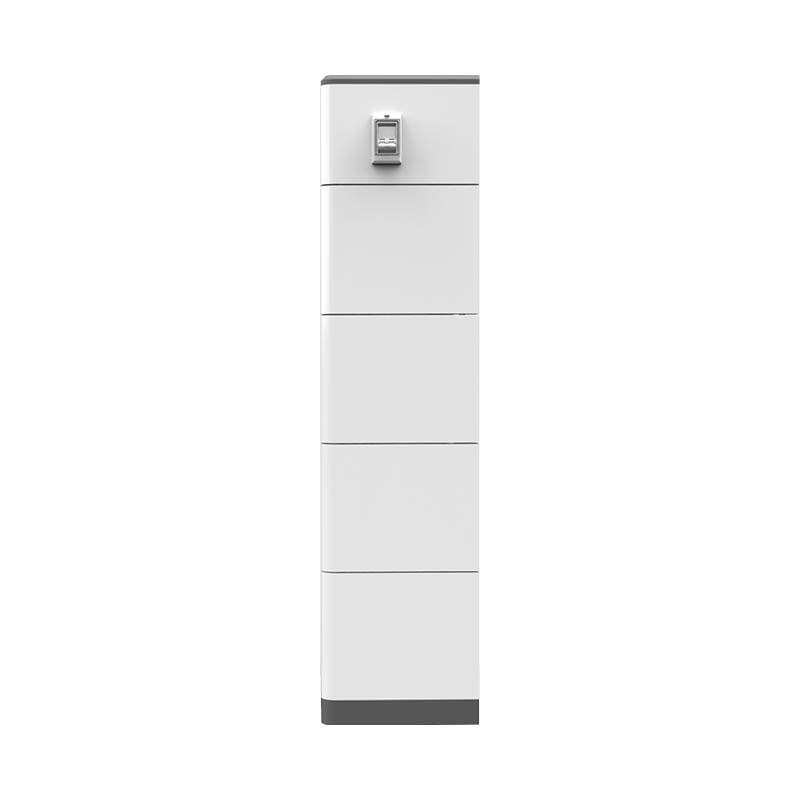

Battery Energy Storage System (High Voltage, 15kWh / 20kWh / 25kWh / 30kWh)
- Flexible applications
- Safety and reliable
- High performance
- Easy installation
Product Highlights
Flexible applications
- Each battery 5.12kWh, scalable to 30.72kWh
- Applicable to single-phase and three-phase high-voltage hybrid inverters
Safety and reliable
- LiFePO4 prismatic battery cell, high safety
- Secured by integrated superior vehicle-level BMS
High performance
- High power emergency-backup when outage
- IP65 for both indoor and outdoor installation
Easy installation
- Compact and light, quick installation and configuration
- Prefabricated cables and connectors for plug and play
